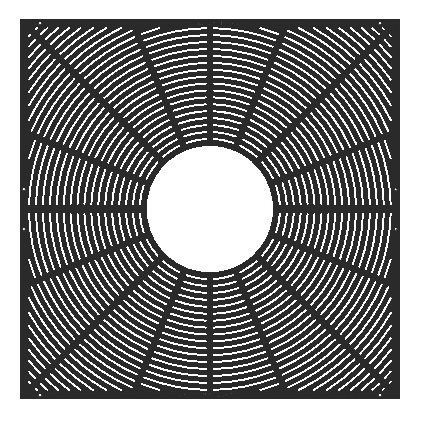

South Bay Foundry, Inc. manufactures SP style tree grates. These grates offer 1/4" slots for high heel compliance. All tree grates include an option to bolt to frame using standard or anti-pilfer bolts. Contact our sales staff to discuss necessary light or tree stake holes.
Material: Ductile Iron ASTM A536 Class 80-55-06
DRAWINGS
| SBF ID# | WIDTH | LENGTH | THICKNESS | AVAILABLE TREE OPENING |
DRAWING |
| D0036-1.5SQ | 36" | 36" | 1½" | Ø16", Ø20" |  |
| D0048-1.5RD | Ø48" | ROUND | 1½" | Ø16", Ø18", Ø20" | |
| D0048-1.5SQ | 48" | 48" | 1½" | Ø16", Ø18", Ø20" | |
| D004872-1.5SQ | 48" | 72" | 1½" | Ø16", Ø20", Ø23" | |
| D004896-1.5SQ | 48" | 96" | 1½" | Ø16", Ø20", Ø23" | |
| D0060-1.5RD | Ø60" | ROUND | 1½" | Ø16", Ø20", Ø24" | |
| D0060-1.5SQ | 60" | 60" | 1½" | Ø16", Ø20", Ø24" | |
| D006096-1.5SQ | 60" | 96" | 1½" | Ø16", Ø20", Ø23" | |
| D0072-1.5RD | Ø72" | ROUND | 1½" | Ø16", Ø20", Ø24" | |
| D0072-1.5SQ | 72" | 72" | 1½" | Ø16", Ø20", Ø24" | |
