NS Style Tree Grates

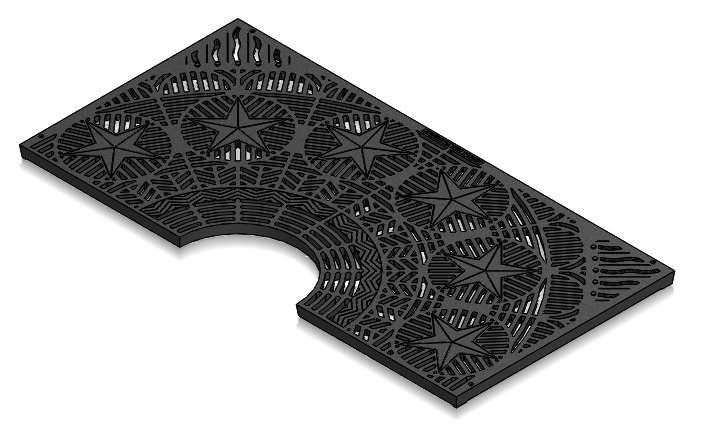

STA TREE GRATE TOPSP TREE GRATE ISOMETRIC

South Bay Foundry, Inc. manufactures NS style tree grates. These grates offer 1/2" slots for ADA compliance. All tree grates include an option to bolt to frame using standard or anti-pilfer bolts. Contact our sales staff to discuss necessary light or tree stake holes.

Material: Ductile Iron NS A536 Class 80-55-06



DRAWINGS
SBF ID# WIDTH LENGTH THICKNESS AVAILABLE
TREE OPENING
DRAWING
D2360-1.5SQ 60" 60" 1½" Ø16", Ø18", Ø20", Ø22", Ø24"
